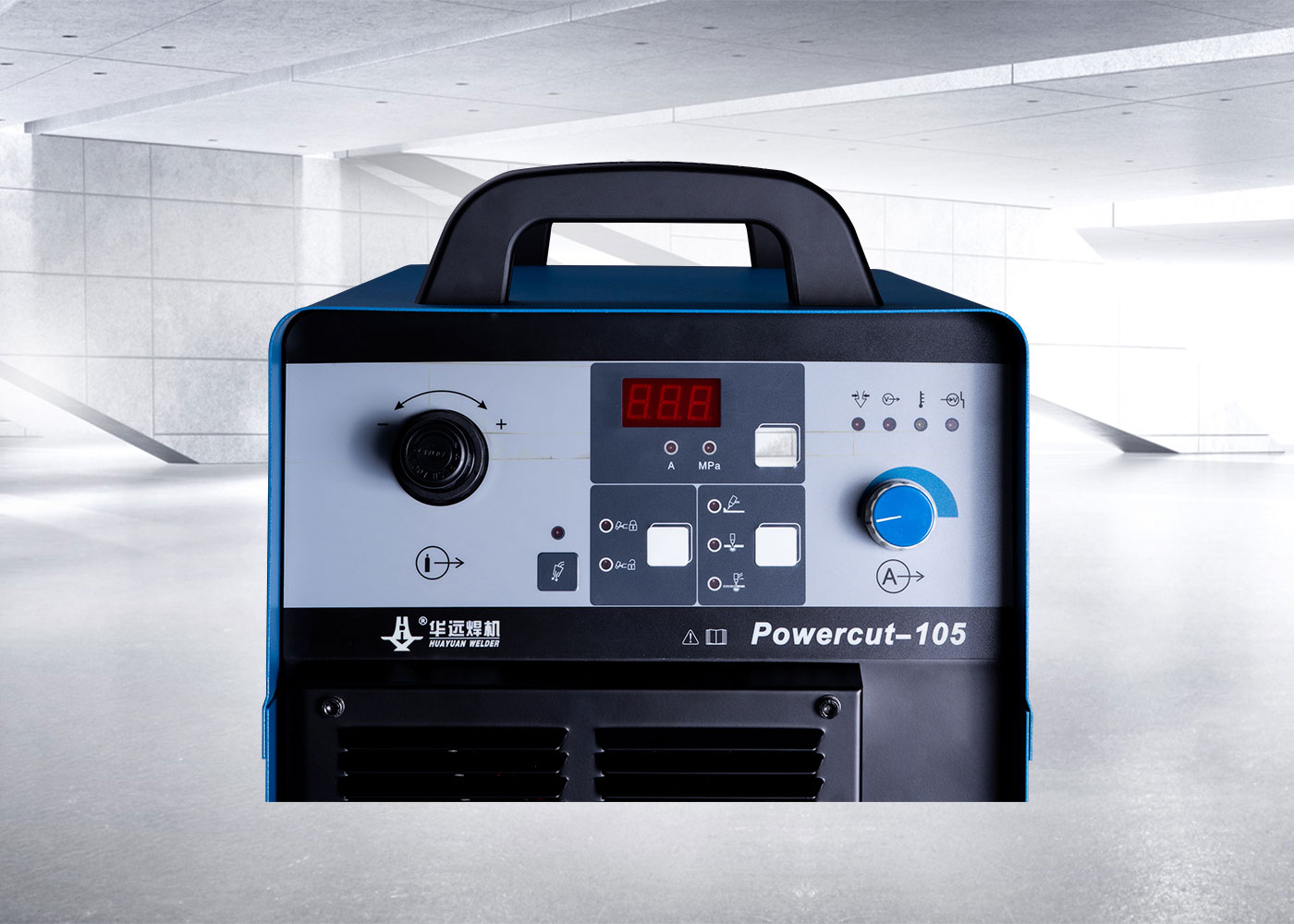

Huayuan Powercut65/105/125 inverter air plasma cutter Powercut series is a non-high-frequency arc air plasma cutting machine, not only can be used for handheld cutting, but also suitable for CNC cutting machines and robots and other automatic cutting systems, with digital and analog interfaces, to meet the communication needs of most automatic cutting equipment.
Key features
■ Non-high-frequency arc ignition, no high-frequency interference
■ High load duration rate, suitable for heavy-duty industrial high-intensity operation
■ With standard cutting, continuous guided arc cutting and gouging three operating modes
■ Digital soft switching inverter technology, accurate parameter control
■ Ability to record the cutting time and number of perforations of consumables
■ With air pressure automatic detection function, It can effectively reduce the possibility of abnormal damage of the torch
■ With overheating, undervoltage and phase loss automatic protection function
Product application
■ Mainly used for the cutting of carbon steel, alloy steel, non-ferrous metals and other metal materials
■ Widely used in industrial power station installation, boiler pressure vessel, metallurgy, petrochemical, aerospace, shipbuilding, engineering machinery, steel structure manufacturing and other industries involving metal cutting and planing
Main technical parameters
| Project name | unit | Model | ||
|---|---|---|---|---|
| Powercut65 | Powercut105 | Powercut125 | ||
| Enter the power supply | V/Hz | 3~380±15% 50/60 | ||
| Rated input current | A | 20.4 | 35.6 | 47.3 |
| Rated input power | KW | 9.7 | 17.8 | 23.7 |
| Rated input capacity | kVA | 13.4 | 23.4 | 31.2 |
| Rated no-load voltage | V | 348 | 348 | 348 |
| Rated load duration rate | . | 100% ( 40°C ) | ||
| Rated output current and voltage | A/V | 65/139 1 105/160 I 125/175 | ||
| Factor | . | 0.72 | 0.76 | 0.76 |
| efficiency | . | 92.5% | 94.3% | 92.8% |
| Output current regulation range | A | 20-65 | 30-105 | 30-125 |
| Arc pressure output ratio | – | 1:1/1:20/1:21.1/1:30/1:40/1:50 (factory value 1:50) | ||
| Arc ignition method | – | Non-high-frequency arc ignition | ||
| Mass cutting capacity (carbon steel) | mm | 16(*1) | 20(*1) | 25(*1) |
| Production perforation capacity (carbon steel) | mm | 16 (*2) | 20 (*2) | 25(*2) |
| Maximum cutting capacity | mm | 25 (*3) | 40 (*3) | 44 (*3) |
| Insulation class | – | Grade F | ||
| Cut the power cooling method | – | Air cooled | ||
| Torch cooling method | – | Air-cooled | ||
| Enclosure rating | – | IP21S | ||
| Dimensions (L×W×H) | mm | 675×315×605 | ||
| weight | kg | 38 | 46 | 46 |
