Product application

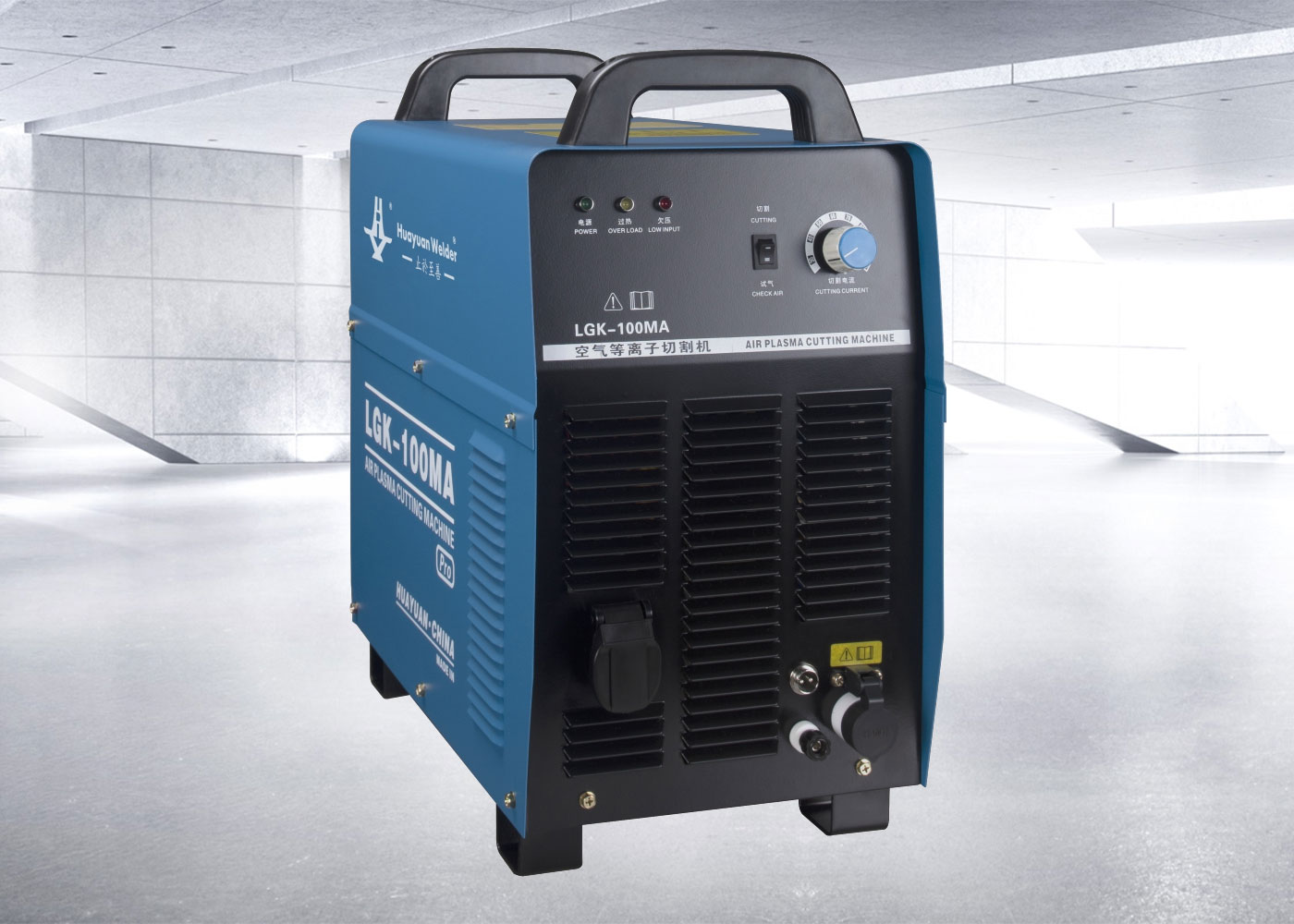

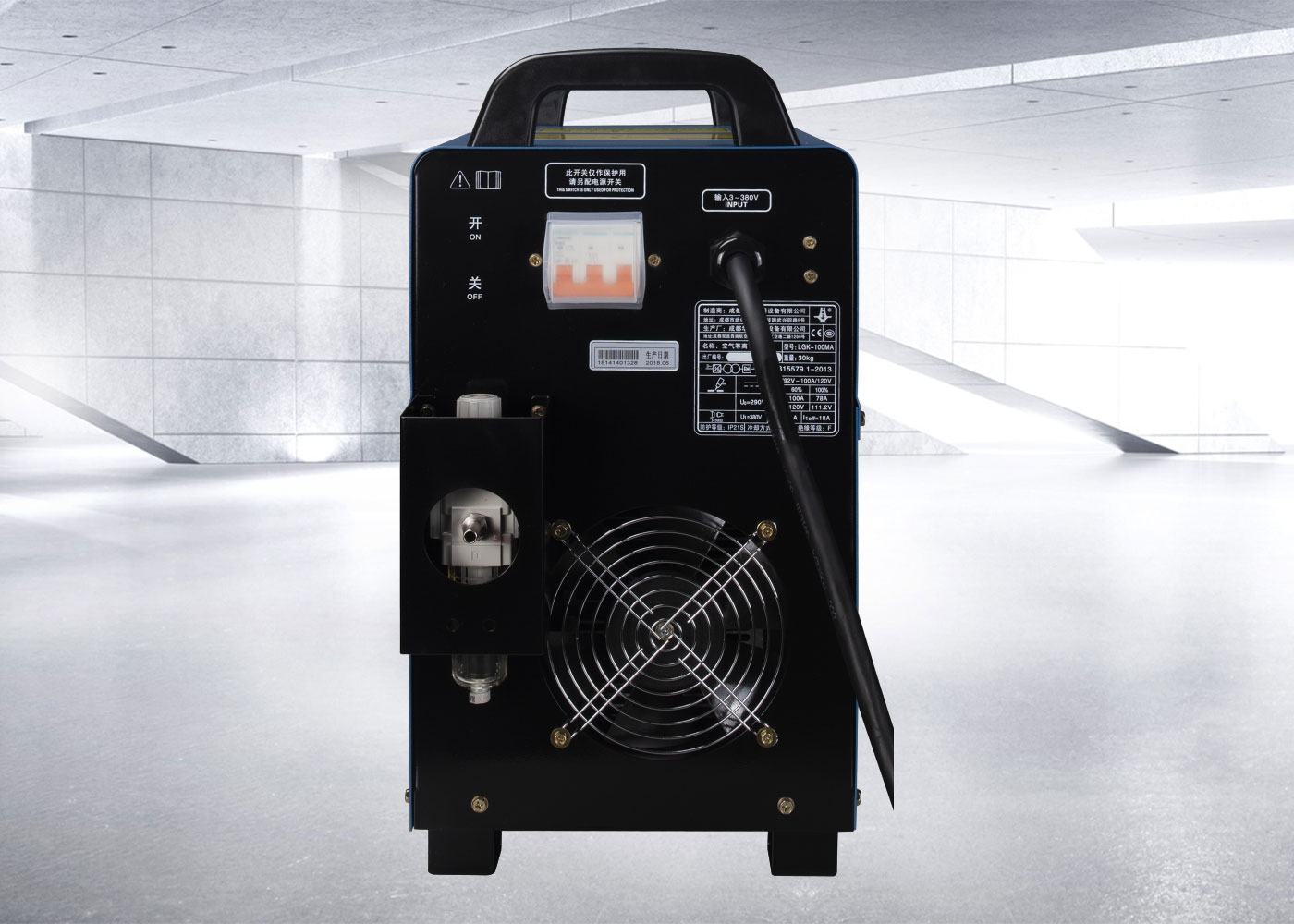

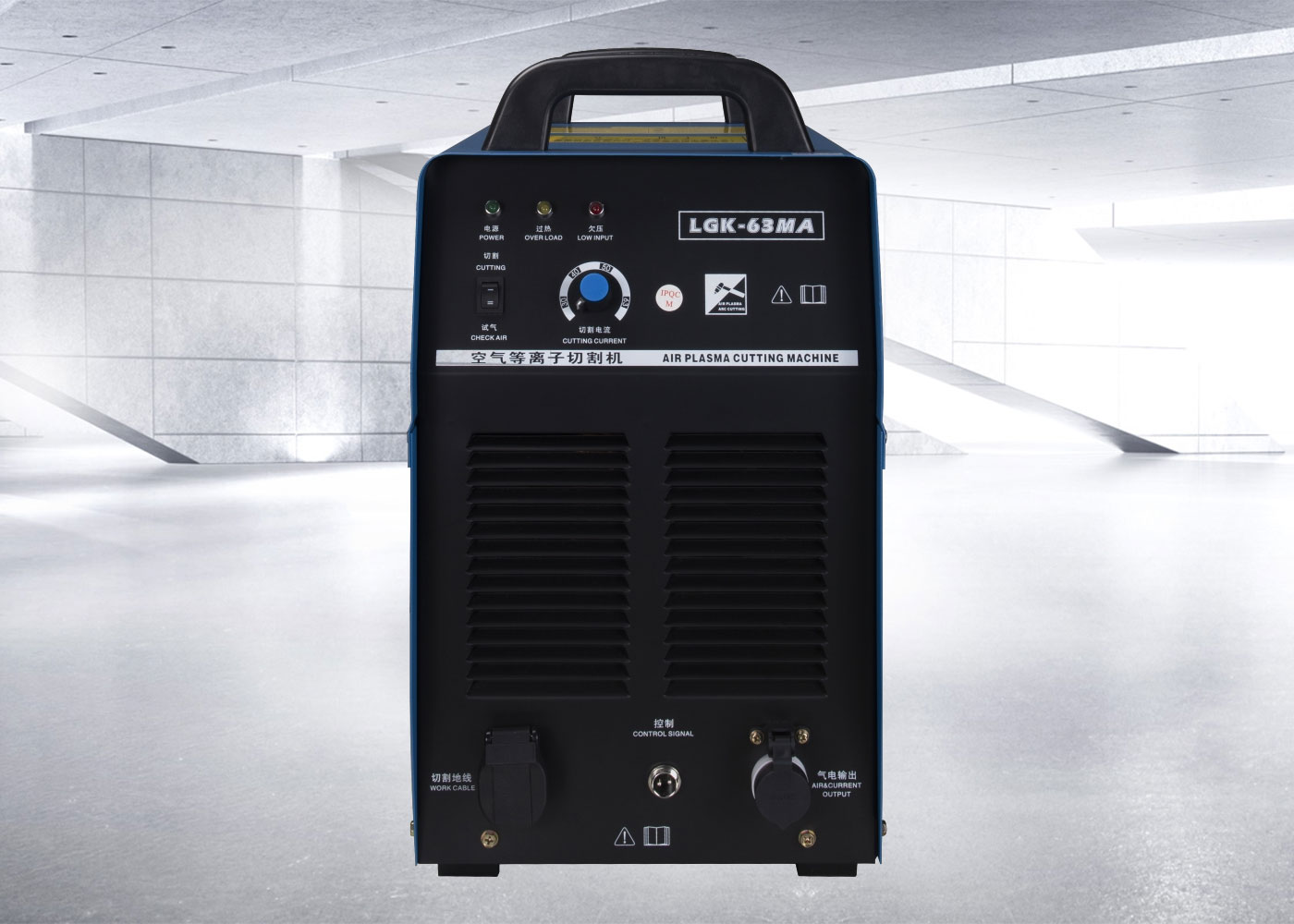

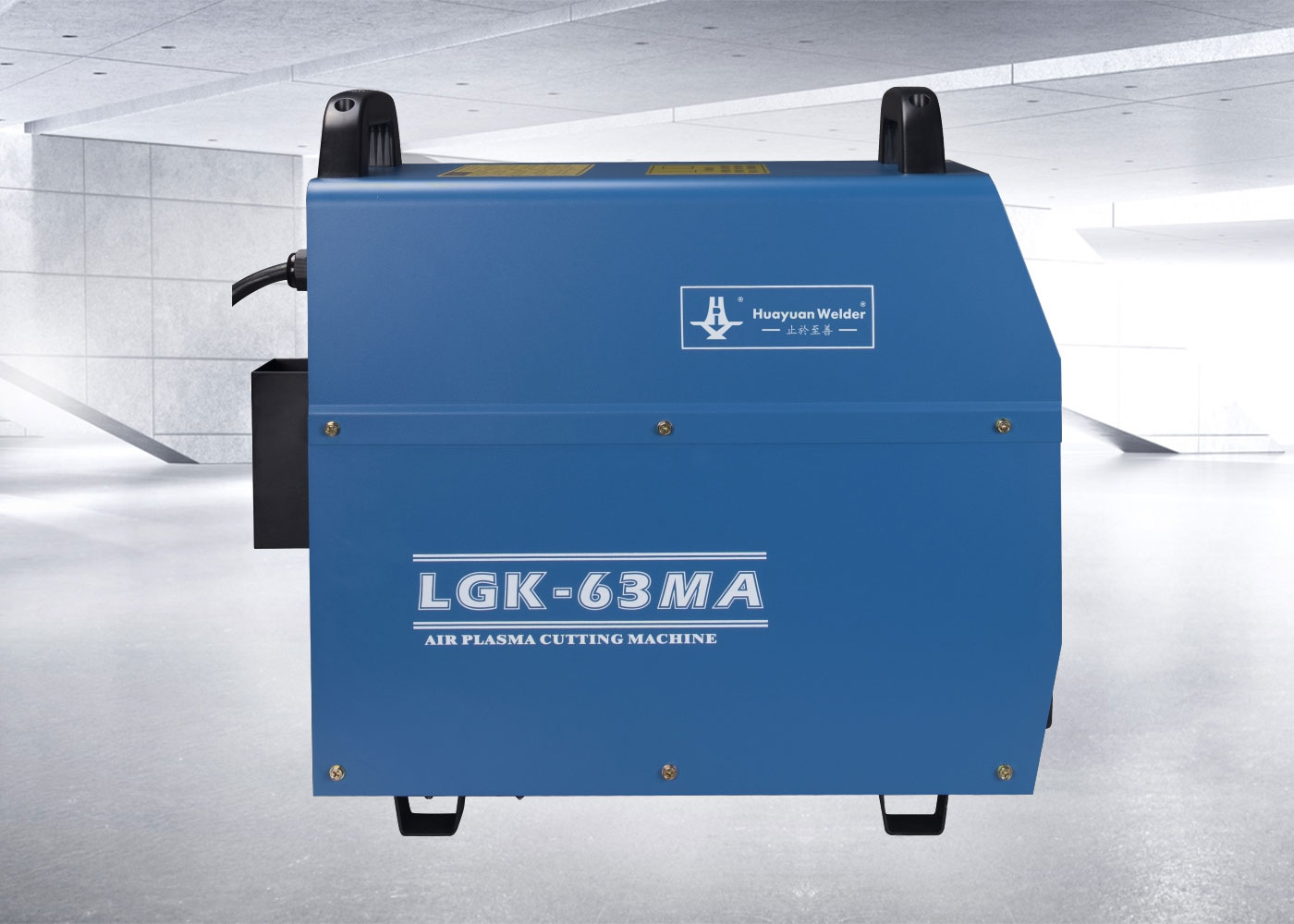

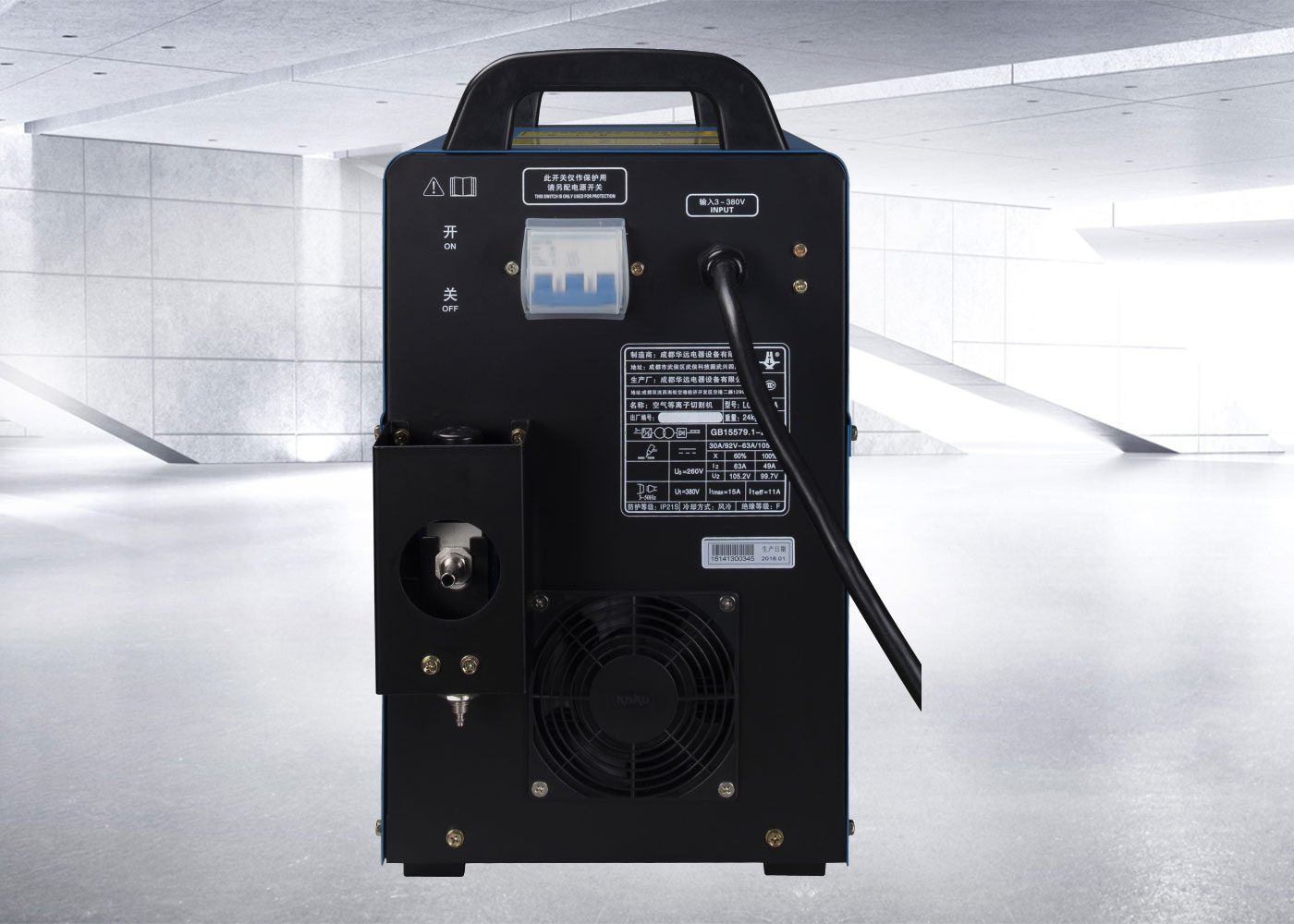

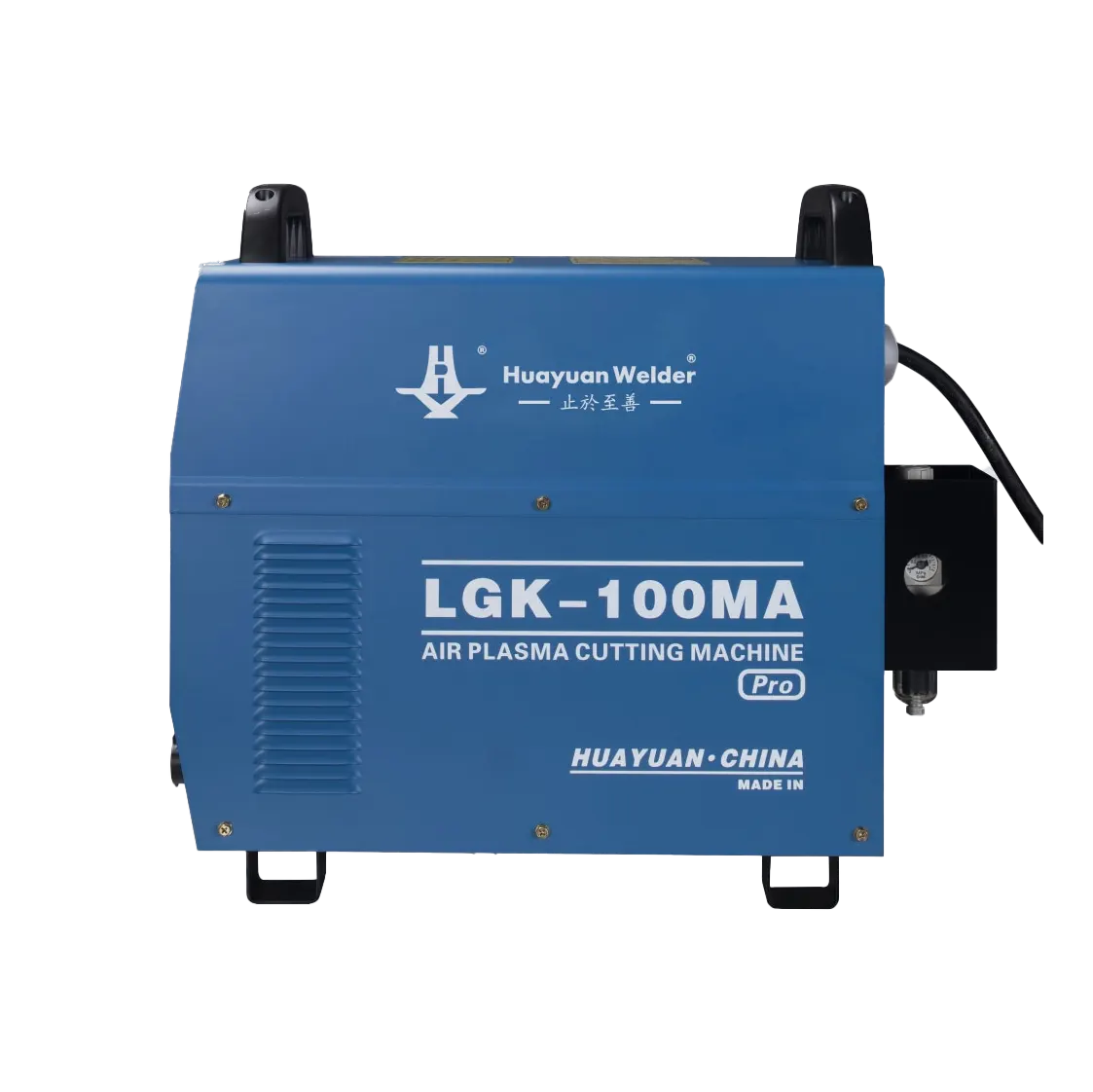

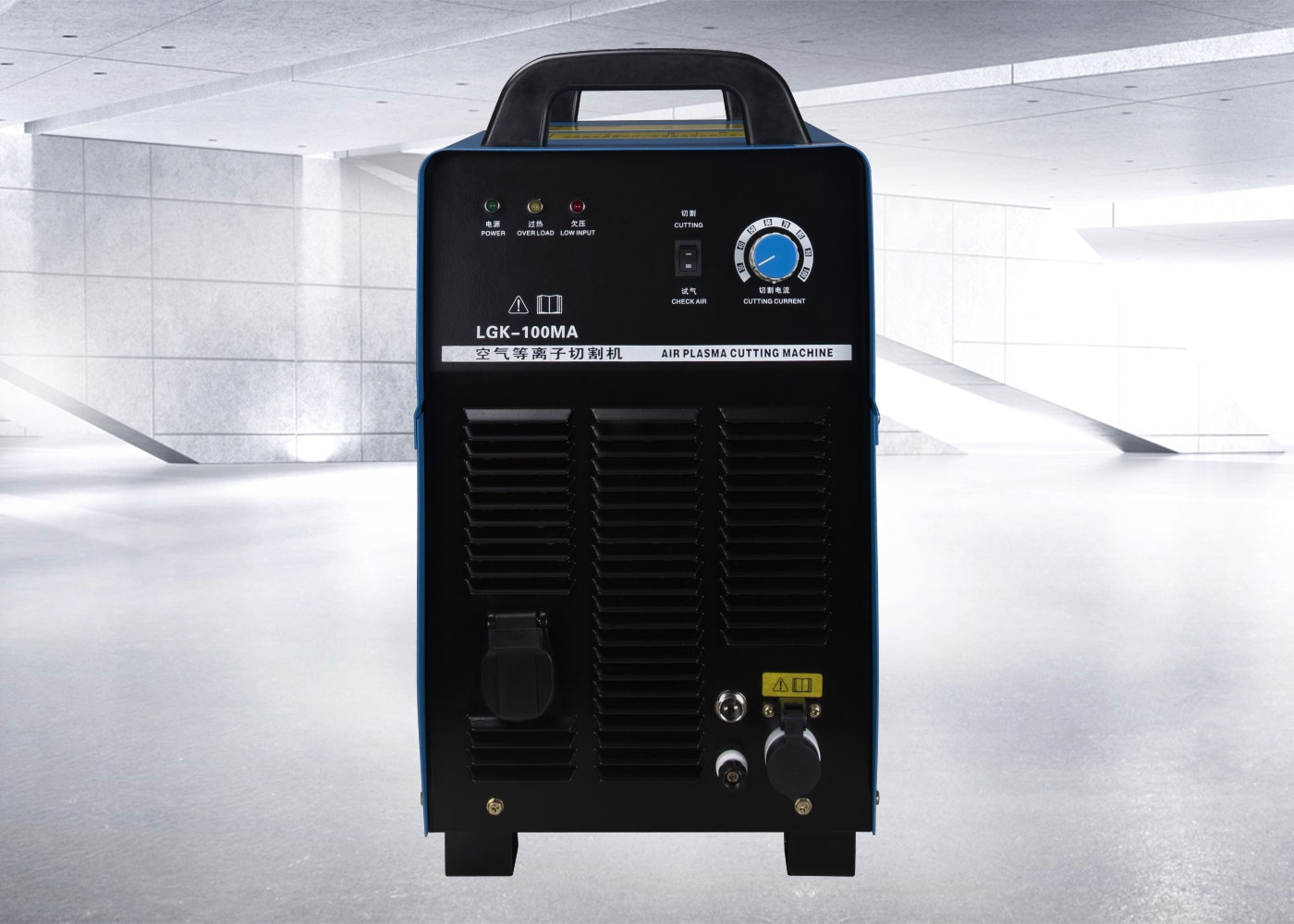

■ Huayuan LGK-63/100MA inverter air plasma cutter mainly used for manual cutting of carbon steel, alloy steel, non-ferrous metals and other metal materials
■ Widely used in boiler chemical industry, pressure vessel production, industrial power station installation, metallurgical construction, chemical construction, aerospace industry, automobile manufacturing and maintenance, building decoration and other industries involving metal cutting
LGK-63/100MA inverter air plasma cutter Key features
■ High load duration rate, suitable for heavy industry
■ Wide grid voltage adaptability
■ Cutting current slow rise technology to reduce the consumption of torch accessories
■ Good arc stiffness, smooth incision
■ Scientific dustproof design, high reliability of the whole machine
■ Compact structure, small size, light weight
■ Cutting current is steplessly adjustable, Suitable for workpieces of different thicknesses
■ With air test function, easy to adjust air pressure
■ With underpressure, overheating automatic protection function
Main technical parameters
| Project name | unit | Model | |
|---|---|---|---|
| LGK-63MA | LGK-100MA | ||
| Enter the power supply | V/Hz | 3~380±15% 50/60 | |
| Rated input capacity | kVA | 9.3 | 15.8 |
| Rated input current | A | 14.5 | 24 |
| Rated no-load voltage | V | 265 | 300 |
| Rated load duration | – | 60% (40°C ) | |
| efficiency | – | 93% | 89% |
| Factor | – | 0.76 | 0.85 |
| Input current regulation range | A | 30-63 | 30-100 |
| Mass cutting capacity (carbon steel) | mm | 15 | 25 |
| Cutting capacity (carbon steel) | mm | 25 | 40 |
| Arc ignition method | – | Contact ignition | Non-contact ignition |
| Plasma gas | – | air | |
| Supply air pressure | MPa | 0.3-0.5 | 0.4 〜0.6 |
| Torch cooling method | – | Air-cooled | |
| Power cooling mode | – | Air cooled | |
| Insulation class | – | Grade F | |
| Enclosure rating | – | IP21S | |
| Dimensions (L×W×H) | mm | 530×280×485 | |
| Net weight of the power supply | kg | 25 | 30 |
