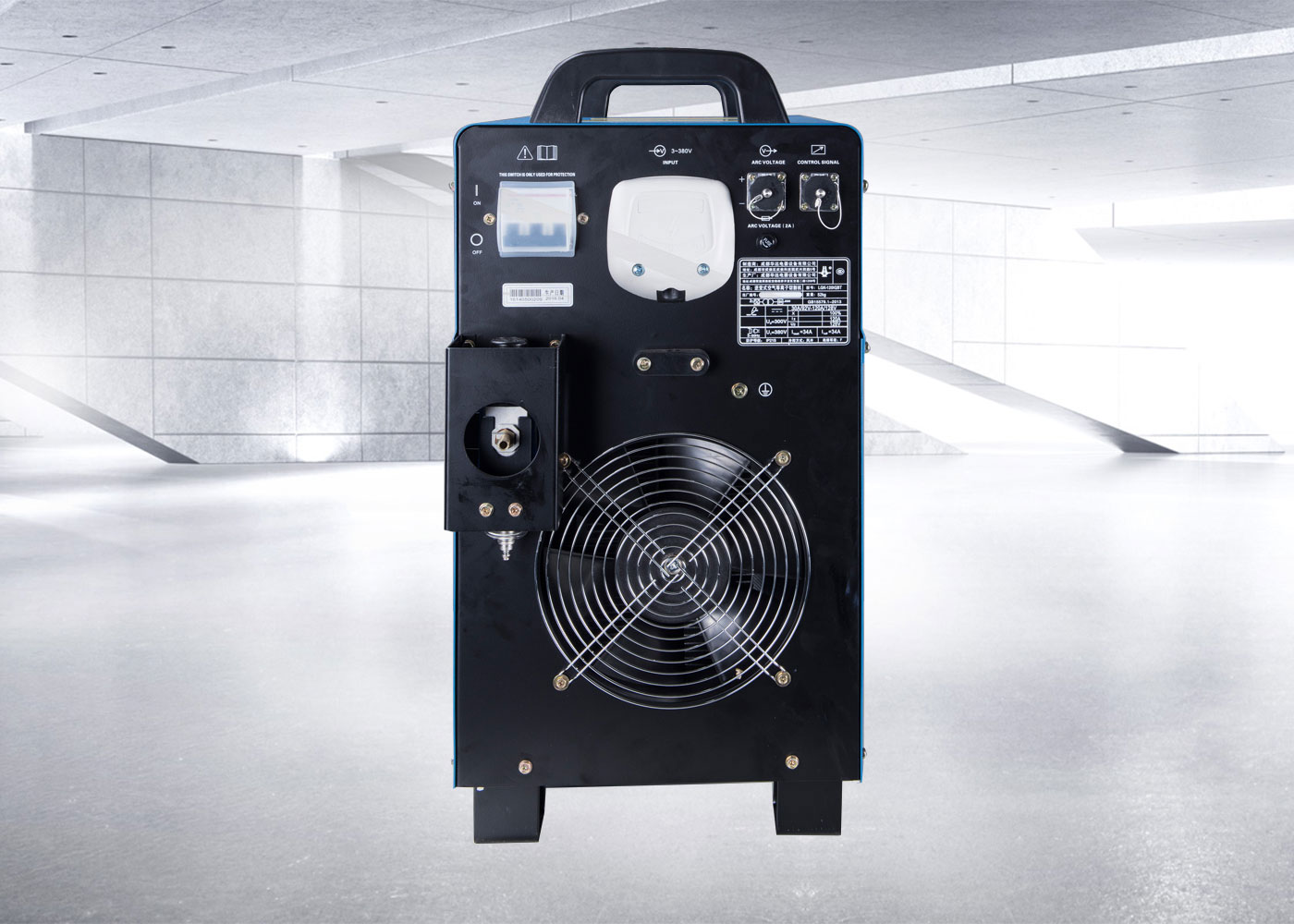

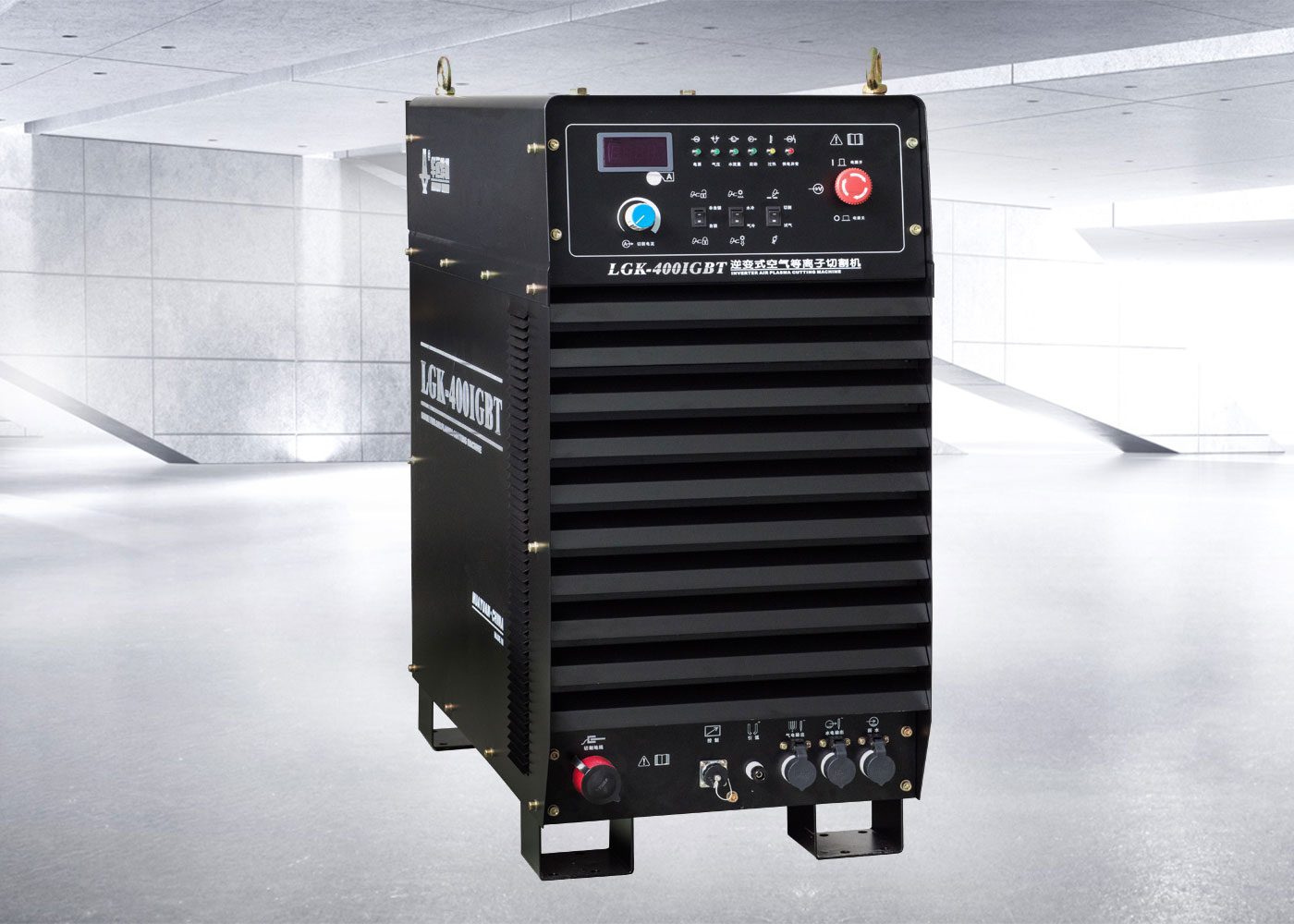

Considering an advanced solution for your cutting needs? The Inverter Air Plasma Cutting Machine may be the perfect fit for your requirements. Engineered for precision and efficiency, this machine has transformed the way businesses handle cutting tasks. Discover its impressive features below and, should you have any questions or need a bespoke solution, our team is on hand to guide you. Dive in to see what makes this machine a game-changer in the cutting industry.
Key features
- High load duration rate, suitable for heavy industry
- Cutting current slow rise technology, reduce the consumption of torch accessories
- Wide grid voltage adaptability
- Scientific dustproof design, high reliability of the whole machine
- Compact structure, small size, light weight, can be installed on CNC machine tools
- Accurate preset cutting current, steplessly adjustable
- With plasma gas pressure detection, indication function
- With gas test function, easy to adjust air pressure
- With overheating, overpressure, undervoltage, phase loss automatic protection function
Product application
- Mainly used for manual and mechanical cutting of carbon steel, alloy steel, non-ferrous metals and other metal materials
- Widely used in boiler chemical industry, pressure vessel production, industrial power station installation, metallurgical construction, chemical construction, aerospace industry, automobile manufacturing and maintenance, building decoration and other industries involving metal cutting
Main technical parameters
|
Project name |
unit | Model | ||||
|---|---|---|---|---|---|---|

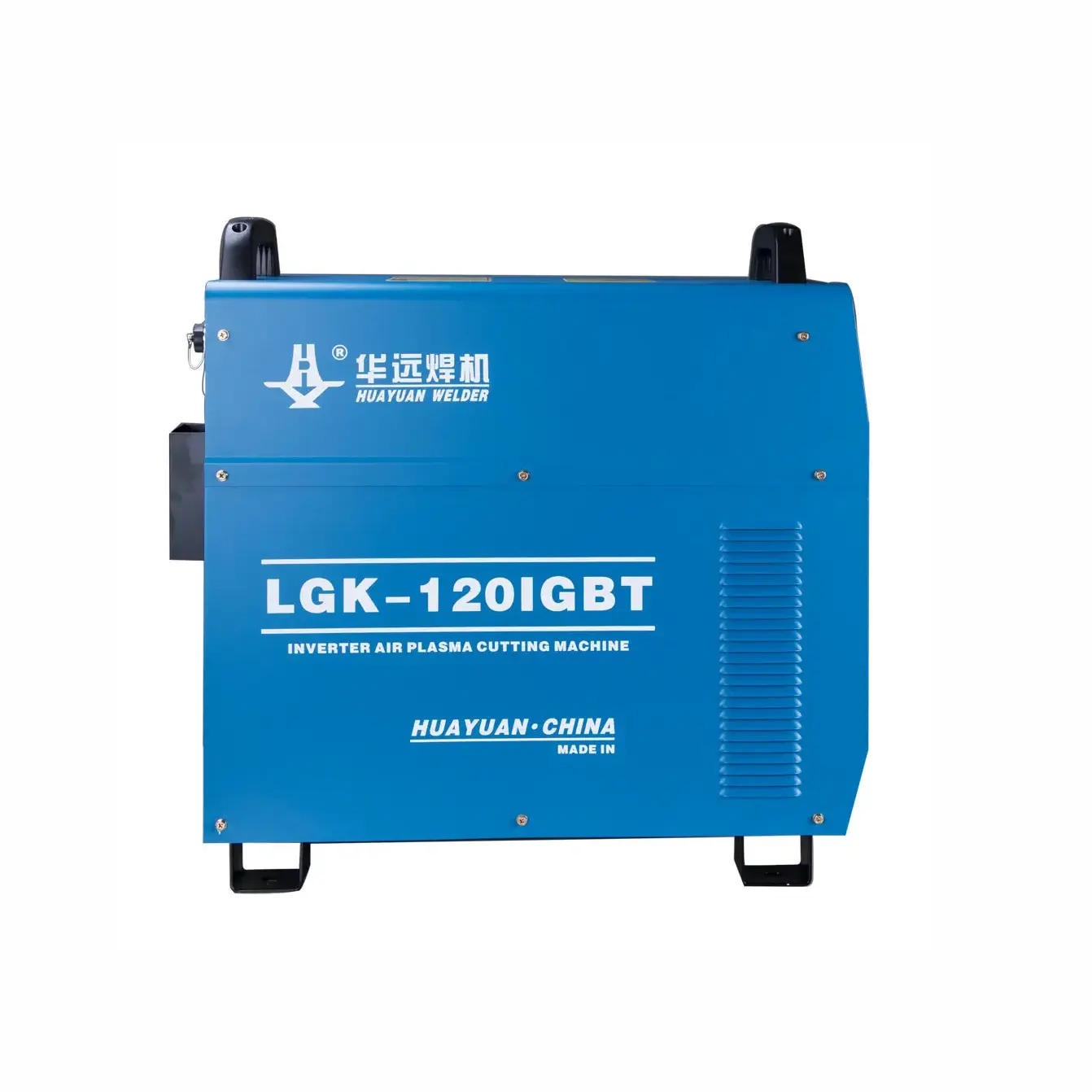

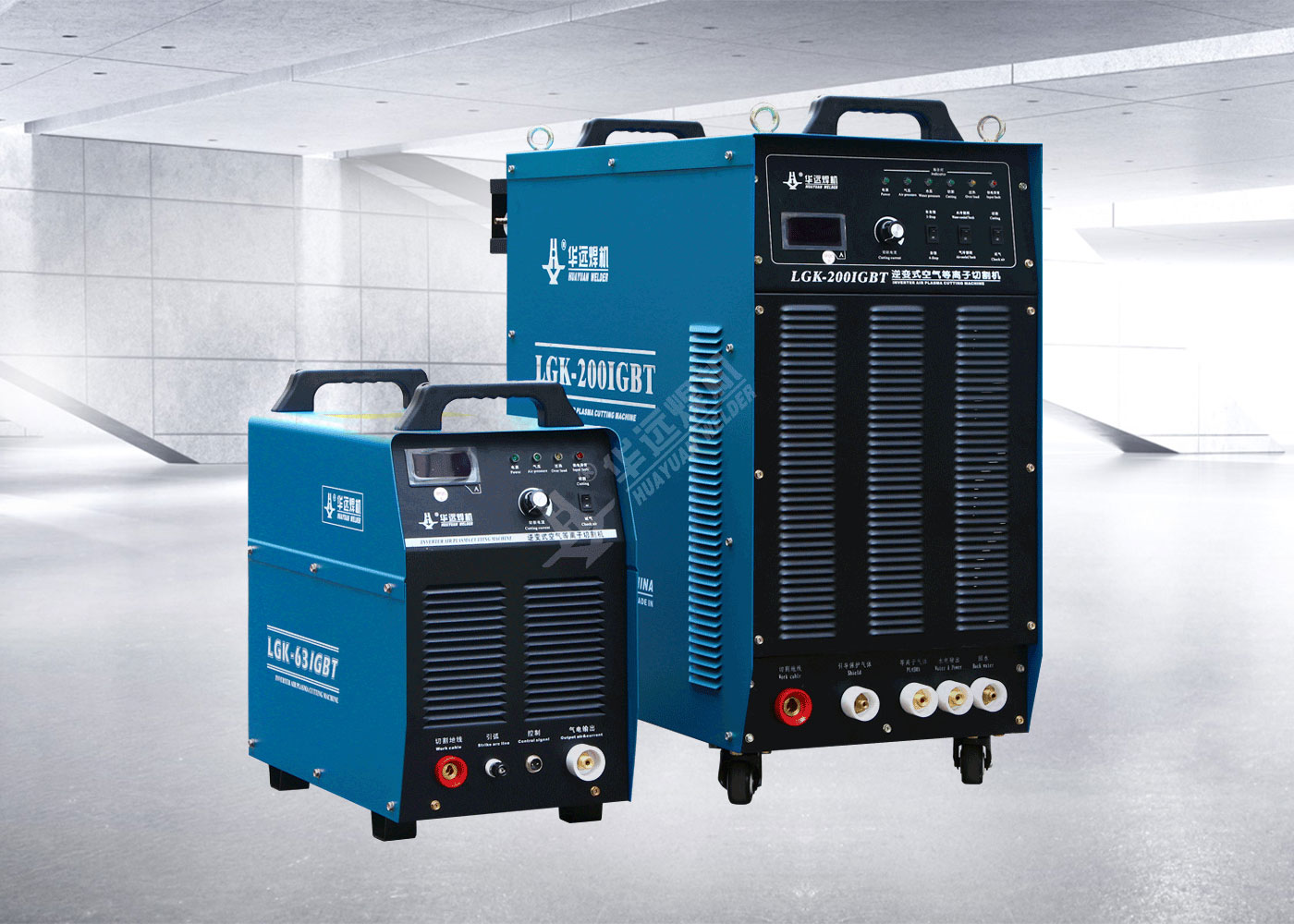

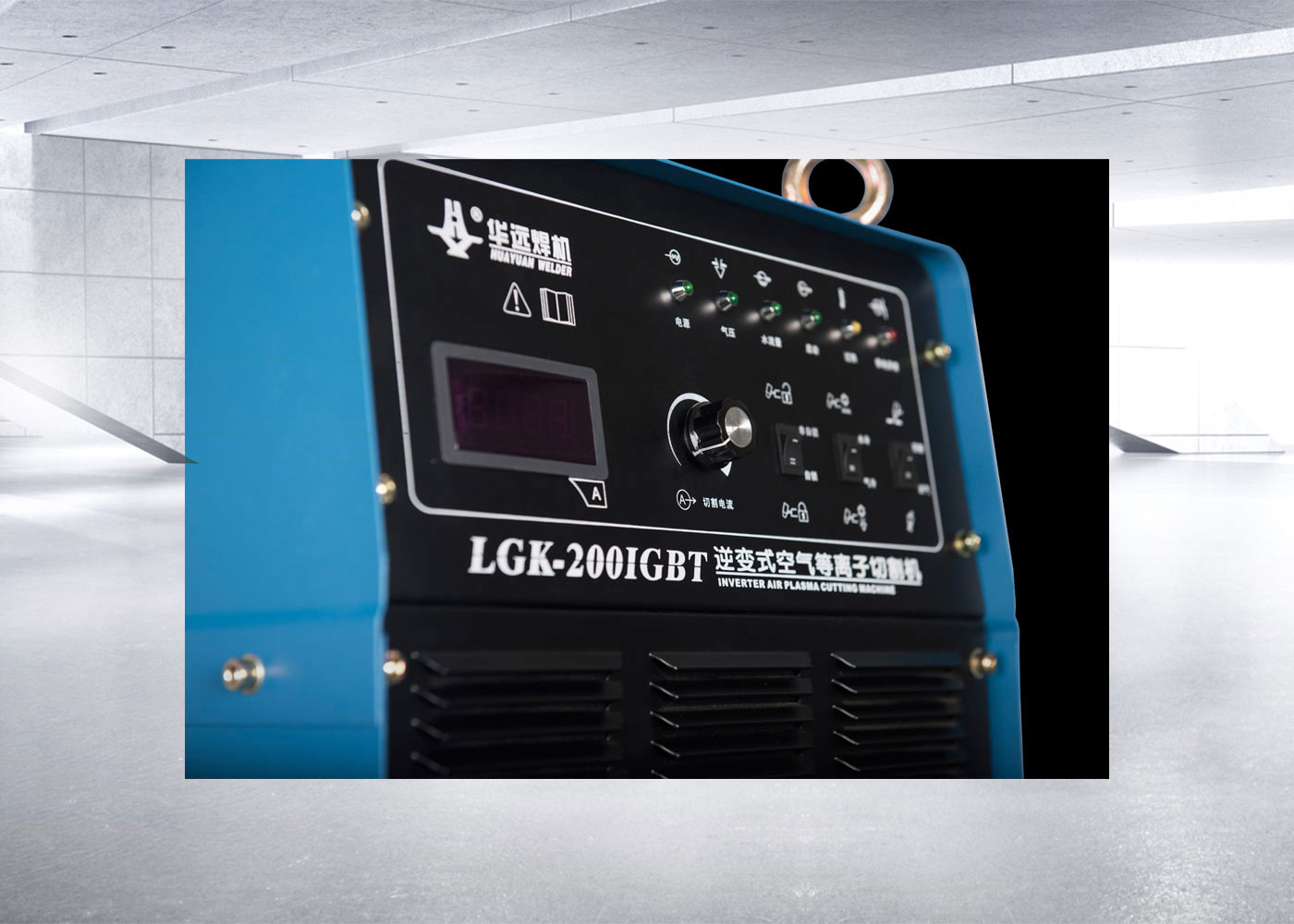

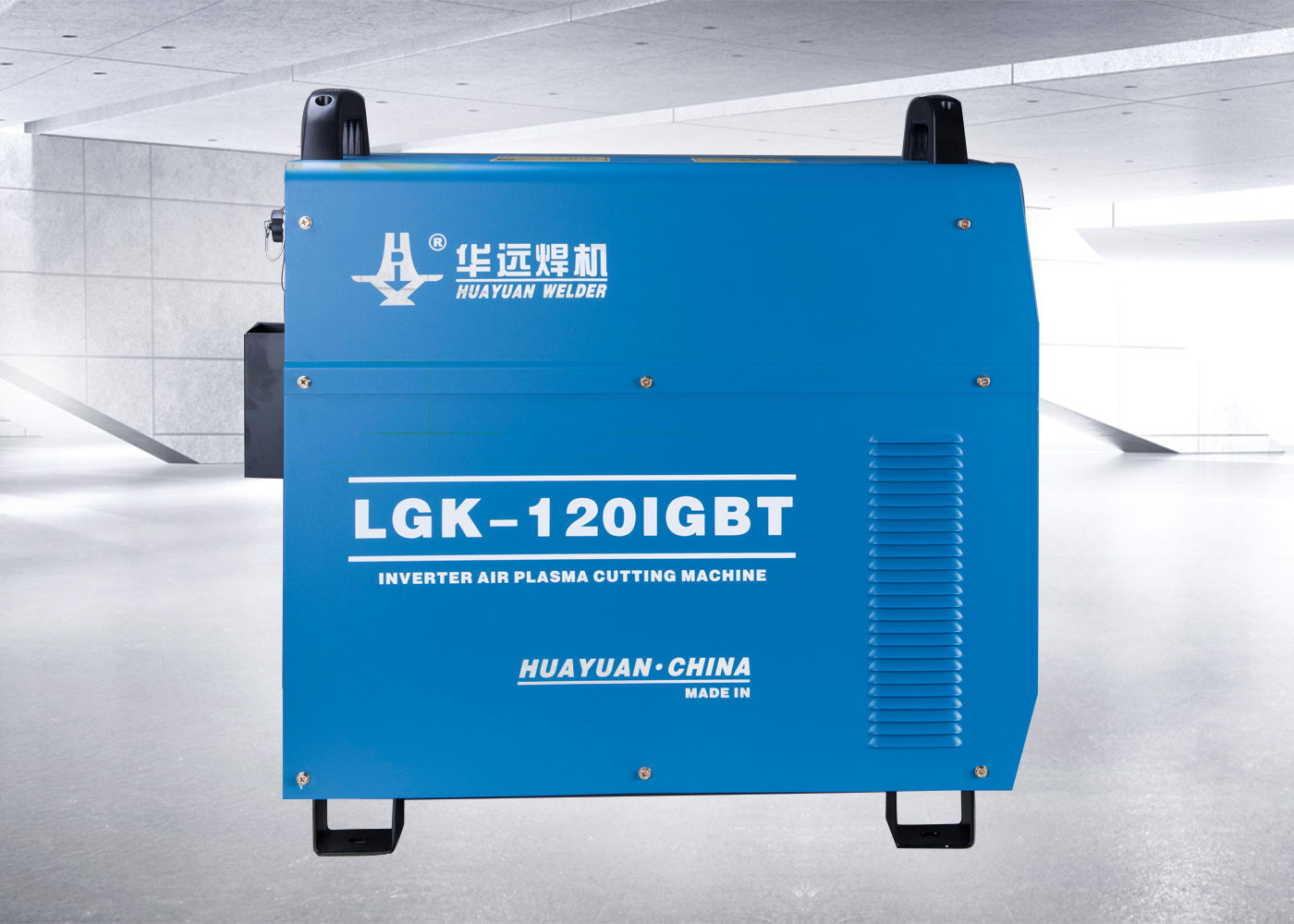

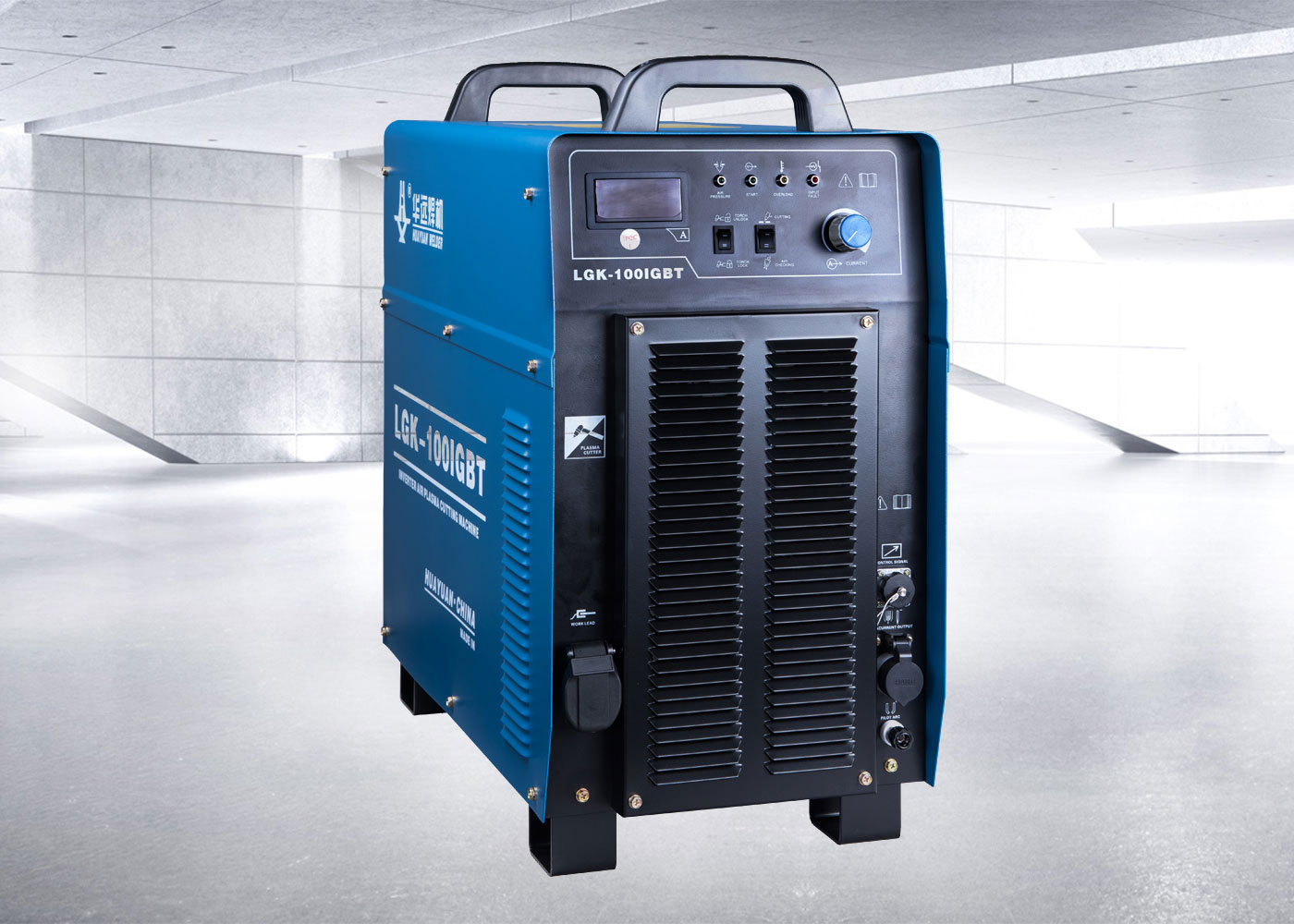

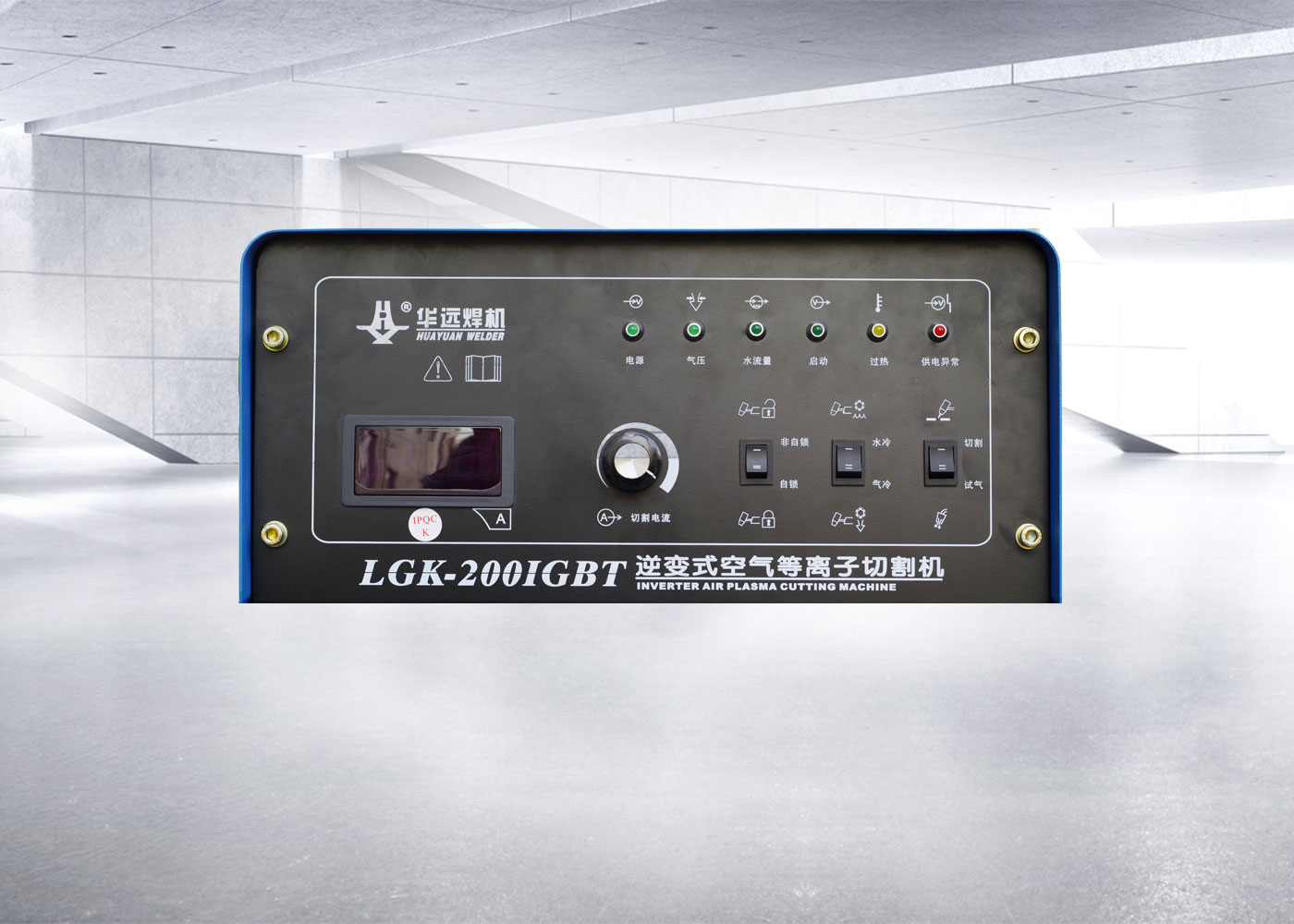

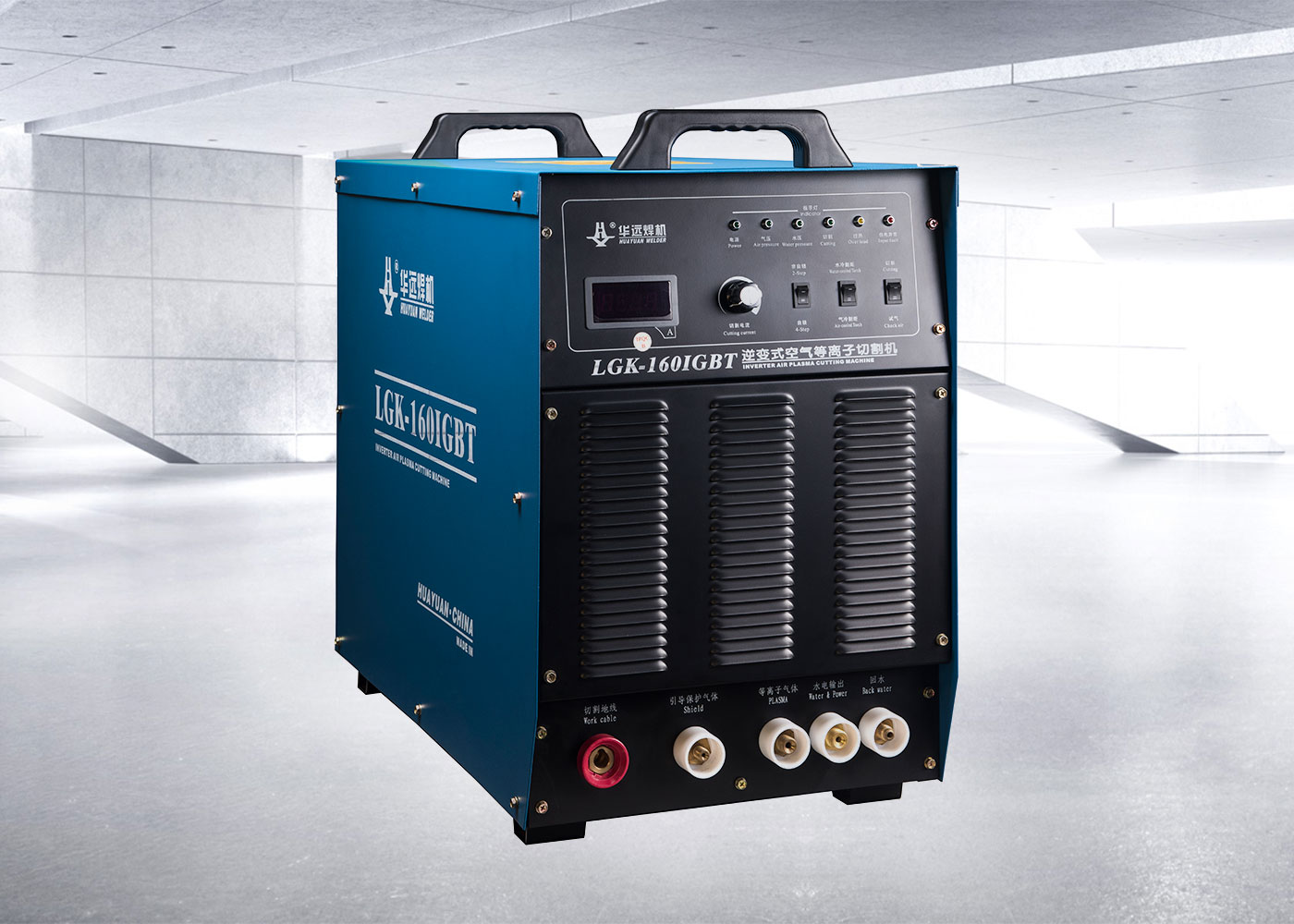

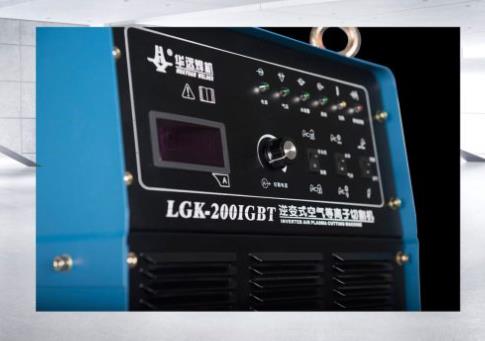

| LGK-63IGBT | LGK-100IGBT | LGK-120IGBT | LGK-160IGBT | LGK-200IGBT | ||
| Enter the power supply | V/Hz | 3~380±15% 50/60 | ||||
| Rated input capacity | kVA | 9.5 | 17.8 | 22.4 | 32.2 | 46.7 |
| Rated input current | A | 14.5 | 27 | 34 | 49 | 71 |
| Rated input current | A | 63 | 100 | 120 | 160 | 200 |
| Rated output voltage | V | 106 | 120 | 128 | 144 | 160 |
| Rated no-load voltage | V | 300 | 300 | 300 | 315 | 315 |
| Rated load duration | – | 60% (40°C ) | 100% (40°C ) | |||
| Output current regulation range | A | 30-63 | 30-100 | 30-120 | 40-160 | 40-200 |
| Arc voltage output signal ratio | – | 1:1/1:20/1:50/1:100 | ||||
| Mass cutting capacity (carbon steel) | mm | 0.3-12 | 0.3-22 | 0.3-25 | 1~35 | 1~45 |
| Cutting capacity (carbon steel) | mm | 25 | 40 | 45 | 55 | 65 |
| Plasma gas | – | pressurized air | ||||
| Supply air pressure | MPa | 0.3-0.5 | 0.4-0.6 | |||
| Torch cooling method | – | Air-cooled | Air-cooled, water-cooled | |||
| Power cooling mode | – | Air cooled | ||||
| Insulation class | – | Grade F | ||||
| Enclosure rating | – | IP21S | ||||
| Dimensions (L×W×H) | mm | 585×280×485 | 675×320×605 | 800×380×650 | 800×380×810 | |
| Net weight of the power supply | kg | 26 | 45 | 46 | 65 | 82 |
