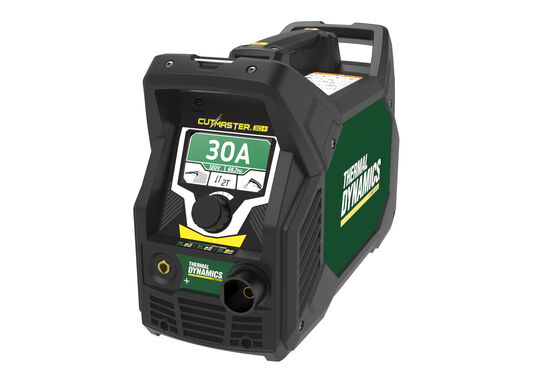

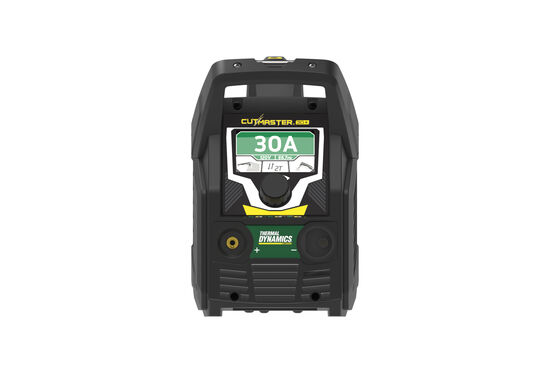

ESAB plasma/welding source TD Cutmaster 30+ is the perfect combination of power and portability for hand-held plasma cutting machine. Plus means more, so we’ve added a user-friendly 4.3 in. TFT LCD screen and upgraded features that give you even more control and flexibility to master any cut up to 10 mm (3/8 in.). Together with the SL60 1Torch, it all adds up to the total plasma cutting package.
INQUIRE ABOUT THIS PRODUCT
Recommended pierce and cut capacity: 10 mm (3/8 in.) Maximum edge cut capacity: 16 mm (5/8 in.)
- Portable and durable with three handles and lightweight, industrial all-weather housing
- Bright 4.3 in. TFT LCD display with glove-friendly adjustment knob simplifies use and provides greater control and flexibility
- Dual input 110-240 V, 1 ph power with automatic voltage detection that sets max output amperage
- Comes with industrial SL60 1Torch featuring 2T/4T function, safety trigger lock, and double-tap trigger to conserve bottled air
- Switch between normal and grate cutting modes
- Automatic air pressure detection and post-cut air purge to expand consumable life
- 40% duty cycle @ 30 A, 100% @ 20 A
- Cutmaster Black Series consumables included for up to 60% longer life
- Industry leading 3-year warranty on power supply and 1-year warranty on torch and leads
- Industrial and General Fabrication
- Light Fabrication
- Industrial Production & Manufacturing
- Automotive Bodies
- Hobbyist
- Agricultural Equipment
- HVAC
- Repair and Maintenance
- Pipeline
- Training Schools
ESAB plasma/welding source TD Cutmaster 30+ Power + Portability.
Tackle cuts in any terrain with industrial housing and a compact design.
- Pierce and cut capacity of 3/8 in. and a maximum edge cut capacity of 5/8 in.
- 40% duty cycle at 30 A and 100% duty cycle at 20 A
- Runs on both 110 and 240 V input with auto-voltage detection
- Lightweight design with three handles for easy transportation
- Durable, weather-protected IP23S housing
Efficiency + Ease.
Mastering cuts is simple with our user-friendly TFT LCD screen.
- Bright 4.3 in. screen is optimal for displaying settings and making adjustments
- Adjustable 2T/4T trigger lock to achieve long cuts by hand or with MechPak
- Automatic air pressure recognition and purging for proper cutting pressure and extended consumable life
- Comes standard with long-lasting Cutmaster Black Series electrodes
Simplicity + Flexibility.
Dominate any plasma cutting job with built-in functionality and flexibility.
- Switch from normal plate to grate cutting mode to extend consumable life when working with expanded metal
- Equipped with SL60TM 1Torch® and a full range of consumables for both shielded and unshielded cutting and gouging
ESAB plasma/welding source TD Cutmaster 30+ Specifications
| Specifications | |
|---|---|
| Amp Low – High | 10 A – 30 A, Continuously adjustable |
| Output Power | 4.5 kW |
| Input Ratings | 110 – 240 VAC, 1 ph, 50/60 Hz |
| Duty Cycle | 20 A @ 100 % duty cycle 30 A @ 40 % duty cycle |
| Operating Temperature | -10 – 50 °C ( 14 – 122 °F ) |
| Gas Requirements | Compressed Air |
| Gas Pressure | 6.2–8.6 bar ( 90–125 psi ) |
| Gas Flow | 80–150 l/min ( 170–350 cfh ) |
| Severs Manual | 16 mm ( 5/8 in. ) |
| Pierces | Up to 10 mm ( 3/8 in. ) |
| Enclosure Class | IP23S |
| Certification Mark | CSA |
| Dimensions, L x W x H | 465 x 200 x 315 mm ( 18.3 x 7.9 x 12.4 in. ) |
| Weight | 11 kg ( 24.25 lbs ) |
| Recommended Cut | Up to 10 mm ( 3/8 in. ) |
