ESAB plasma/welding source Cutmaster 102 in at 62 lbs and provides 100 amps of cutting power. This unit’s light weight compact design combined with multiple voltage selection makes it the most portable and powerful cutting machine available. This unit combined with the 1Torch® has a maximum cut capacity of 45 mm (1 3/4 in.). More cut capacity than any other system in its class!

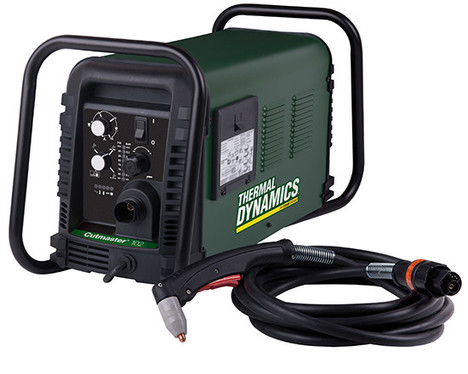

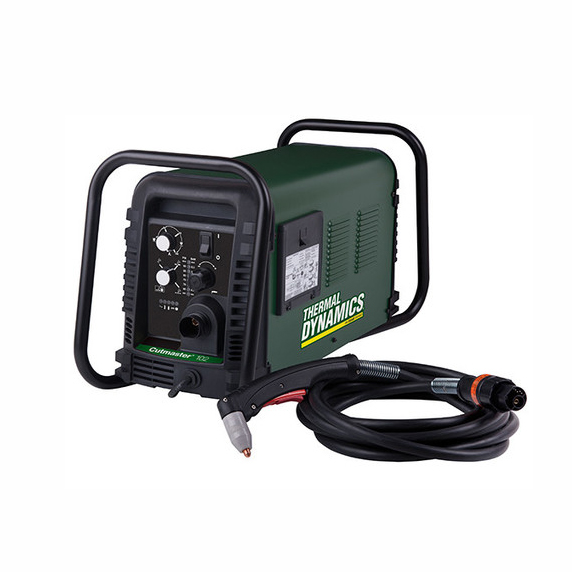

ESAB plasma/welding source Cutmaster 102
The Cutmaster 102 is the fastest cutting 1″ (25 mm) machine on the market today. The Cutmaster 102 Plasma Cutter’s lightweight compact design combined with multiple voltage selection makes it the most portable and powerful cutting machine you can buy. A Thermal Dynamics 1Torch SL100 is included with this system.
Cutmaster 102 Plasma System Features
- All user controls located on the front panel
- Color coded LEDs display status conditions
- Storage compartment for easy access to spare parts and consumables
- Versatile 1Torch with ATC disconnect simplifies adding lead extensions or converting to a machine torch
- Industry’s only 60 Amp drag tip
- True Guard roll bar facilitates transportation and increases protection
- Multi-voltage operation from 208 to 480 Volts in a single power supply
- Auto Pilot Restart instantly reignites the pilot arc while cutting expanded metals
- Lighter weight design for maximum portability.
- 20 ft. lead
- Spare parts kit included
- Maximum cut capacity of 1¾” (45 mm)–More than any other plasma cutting system in its class
INQUIRE ABOUT THIS PRODUCT
- Heavy fabrication
- Manufacturing
- Contractors
- 4-Year warranty power supply
- 1-Year warranty torch
ESAB plasma/welding source Cutmaster 102 Specifications
| Specifications | |
|---|---|
| Output Power | 12 kW |
| Input Ratings | 208-230/460 VAC, 1 ph, 50/60 Hz 600 VAC, 3 ph, 50/60 Hz 400 VAC, 3 ph, 50 Hz |
| Duty Cycle | 80 A @ 80 % duty cycle 100 A @ 60 % duty cycle 100 A @ 100 % duty cycle |
| Gas Pressure | 4.8 bar ( 70 psi ) |
| Gas Flow | 212 l/min ( 450 cfh ) |
| Pierces | 20 mm ( 3/4 in. ) |
| Cuts Manual | 25 – 45 mm ( 1 – 1 3/4 in. ) |
| Dimensions, L x W x H | 762 x 305 x 381 m ( 30 x 12 x 15 ft ) 6.1 m ( 20 ft ) 15.2 m ( 50 ft ) |
| Weight | 28.1 kg ( 62 lbs ) |
*Recommended cut specifications based on handheld use.
