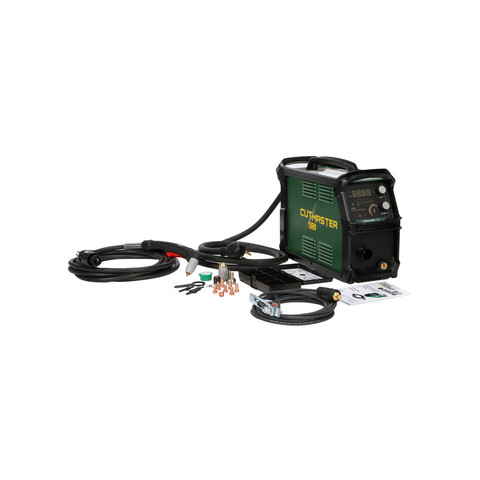

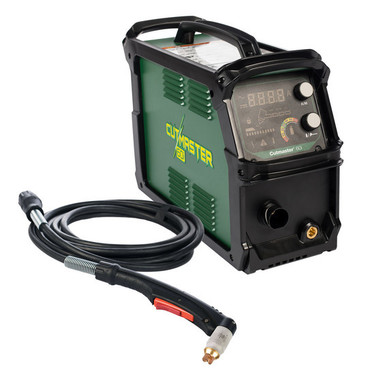

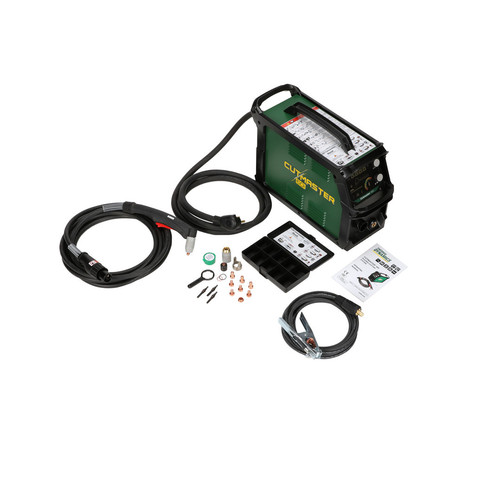

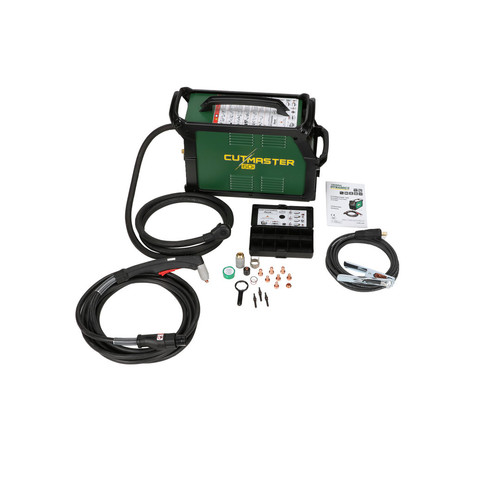

The ESAB plasma/welding source Cutmaster 60i with SL60QD™ 1Torch® is the perfect combination of end-user insight, advanced technology, and intelligent design. Packed with power and offering the highest power-to-weight ratio in its class, the Cutmaster 60i with SL60QD 1Torch also has best in class cutting arc length and the most empowering and engaging user experience no matter the application. Cutmaster MechPak is also available for easy integration into semi-automatic cutting processes.
ESAB plasma/welding source Cutmaster 60i INQUIRE ABOUT THIS PRODUCT
- Built for portability and durability with the integral multi-handle design, available in either a 1 phase or 3 phase unit
- 50% Duty Cycle at 60A with automatic multi-voltage detection from 208-480V
- Industrial SL60QD 1Torch quick disconnect with ATC® (Advanced Torch Connector) allowing selective replacement of either the torch handle assembly or the torch leads, using the patented SureLok® technology
- Up to 3/4 in. (20 mm) recommended cut capacity with maximum sever of 1-1/2 in. (38 mm) and 3/4 in. (20 mm) pierce capability
- High-visibility, oversized display with gas optimizer technology and consumables end-of-life indicator, makes setup and usage simple and productive
- Cutmaster Black Series electrode included for up to 60% longer life of consumable parts
- Industry leading 4-year warranty on power supply and 1-year warranty on torch
- Agricultural Equipment
- Automotive Bodies
- Civil Construction
- General Manufacturing
- HVAC
- Repair and Maintenance
ESAB plasma/welding source Cutmaster 60i Specifications
| Specifications | |
|---|---|
| Output Power | 15 (full output) kW |
| Open Circuit VDC High | 300 VDC |
| Input Ratings | 280-480 VAC, 1 or 3 ph, 50/60 Hz |
| Duty Cycle | 50 A @ 60 % duty cycle 60 A @ 50 % duty cycle 40 A @ 100 % duty cycle |
| Gas Requirements | Compressed Air |
| Gas Pressure | 6.2-8.6 bar |
| Gas Flow | 142-235 l/min |
| Severs Manual | 38 mm |
| Pierces | 20 mm |
| Torch Air Pressure | 1 kg/cm² ( 1 psig ) |
| Torch Air Consumption | 1 l/min ( 1 cfh ) |
| Dimensions, L x W x H | 536 x 199 x 593 mm |
| Weight | 16.8 Kg |
| Plate Thickness 6 mm 13 mm 16 mm 19 mm 25 mm 32 mm 38 mm |
Recommended Cut Speed 2030 mm/min 660 mm/min 480 mm/min 360 mm/min 150 mm/min 110 mm/min 110 mm/min |
| Recommended Cut | 20 mm |
