CNC Gantry plasma cutter/cutting machine

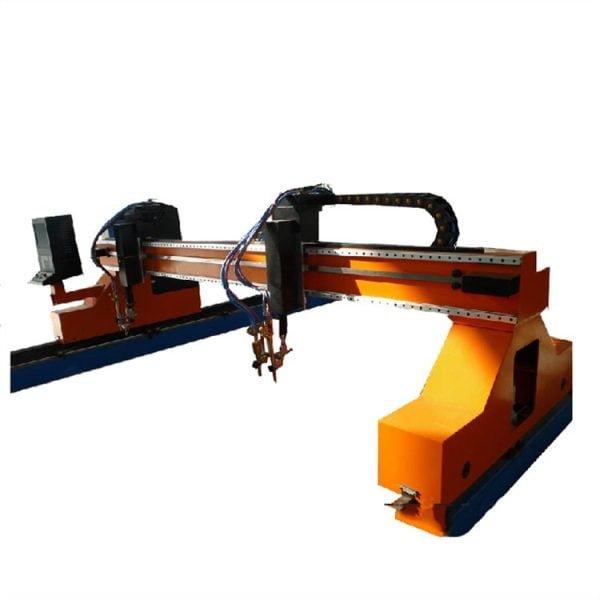

CNC Gantry plasma cutter/cutting machine is gantry structure, transverse span of 3m, 4m, 5m, 6m, 8m and other specifications, are driven by bilateral, stable operation, good configuration, high efficiency, can be used for a variety of carbon steel, manganese steel, stainless steel and other metal materials of large, medium and small steel plate cutting.Also can be configured according to the requirements of users more cutting torch, or configured into special-shaped cutting and straight cutting dual-use cutting mode, can also be optional with capacity or plasma automatic leveling system.

CNC Gantry plasma cutter/cutting machine is gantry structure, transverse span of 3m, 4m, 5m, 6m, 8m and other specifications, are driven by bilateral, stable operation, good configuration, high efficiency, can be used for a variety of carbon steel, manganese steel, stainless steel and other metal materials of large, medium and small steel plate cutting.Also can be configured according to the requirements of users more cutting torch, or configured into special-shaped cutting and straight cutting dual-use cutting mode, can also be optional with capacity or plasma automatic leveling system.

CNC Gantry plasma cutter/cutting machine Product details:

Longitudinal drive control system:

Longitudinal use of double pinion rack meshing drive, equipped with a high precision reducer, plus speed and position feedback, to achieve high precision positioning drive.

Lateral drive control system:

The high precision single axle guide rail is adopted to realize the smooth movement of the same image and mirror image between the master and slave cutting torch through the steel wire device.

Pneumatic transmission mode:

In the longitudinal movement direction of the machine, there are many working cables, grounding cables and air sources, so the longitudinal movement of the load is very large, which will affect the running stability and reliability of the machine. The use of a trailing chain following mechanism ensures the cleanliness of the pipeline, and can reduce the overrushing tendency of the machine in the high-speed turning bay.

It can prevent the wear of the pipeline caused by high-speed cutting movement, and save unnecessary pipeline length at the same time.

Plasma cutting torch anti-collision device:

The 360° anti-collision mechanism is controlled by sensors. Once the plasma torch is hit in any direction, the machine will stop moving immediately.

CNC Gantry plasma cutter/cutting machine Plasma cutting effect

Economical gantry type CNC plasma cutter/cutting machine Flame cutting effect

CNC Gantry plasma cutter/cutting machine parameters

Model MCQC-2040 MCQC-2060 MCQC-2080 MCQC-2560 MCQC-3060 MCQC-3080 MCQC-30100 MCQC-30120
Effective cutting width (mm) 2000 2000 2000 2500 3000 3000 3000 3000
Effective cut length  (mm) 4000 6000 8000 6000 6000 8000 10000 12000
Standard cutting torch number (set) 1 2 2 2 2 2 2 2
Track length (m) 4、6、8、10、12…… Track: 2 m/section, optional length of track
Cutting torch journey (mm) 150
Cuttingthickness (mm) Flame cutting:5 – 200  mm          Plasma cutting:1 – 50 mm
(according to plasma size)
Cuttingspeed (mm/min) Flame cutting:0 – 1000 mm/min      Plasma cutting:0 – 5000 mm/min
Idle speed (mm/min) 0 – 6000 mm/min
Power source AC220 V/ 380 V  50HZ
Drive method Bilateral drive
Machine drive motor power 800 W/ 2500W
Cuttingmode Flame cutting: oxygen + acetylene, propane      plasma cutting: compressed air, oxygen, nitrogen, etc

The form is for reference only, please consult the staff for more information.
